Thông số kỹ thuật

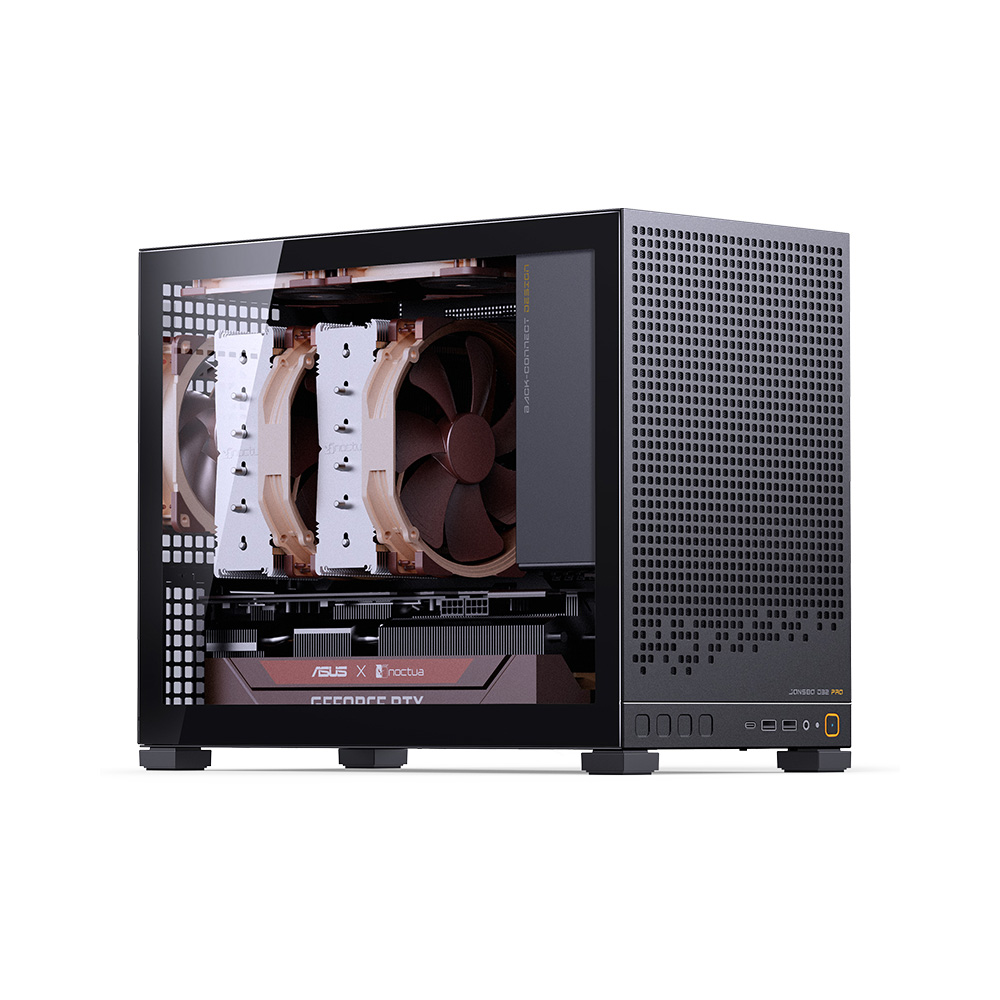

Vỏ Case Jonsbo D32 Pro Black (MINI Matx, Màu Đen)
Chi tiết vui lòng tham khảo
| Model | D32 PRO |
| Kích thước | 384mm x 207mm x 302mm (depth/width/height) |
| Dimensions (with feet and other protrusions) | 396mm x 207mm x 314mm (depth/width/height) |
| Chất liệu | SPCC Steel(0.7mm+0.8mm) |
| Bo mạch chủ | Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be
switched to B mode)
|
| Drive Bay | 2.5″:up to 4, depends on other hardware configurations
3.5″: up to 2 (shared with the 2 x 2.5″ mounts), depends on other hardware configurations |
| Cổng I / O phía trước | USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1 |
| FAN | Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations |
| Radiator support | Top，up to 240mm |
| CPU Air Cooler Clearance | In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)
In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU) |
| GPU Clearance | Up to 365mm |
| Weight | N.W. 4.6kg / G.W. 5.8kg |
