Thông số kỹ thuật

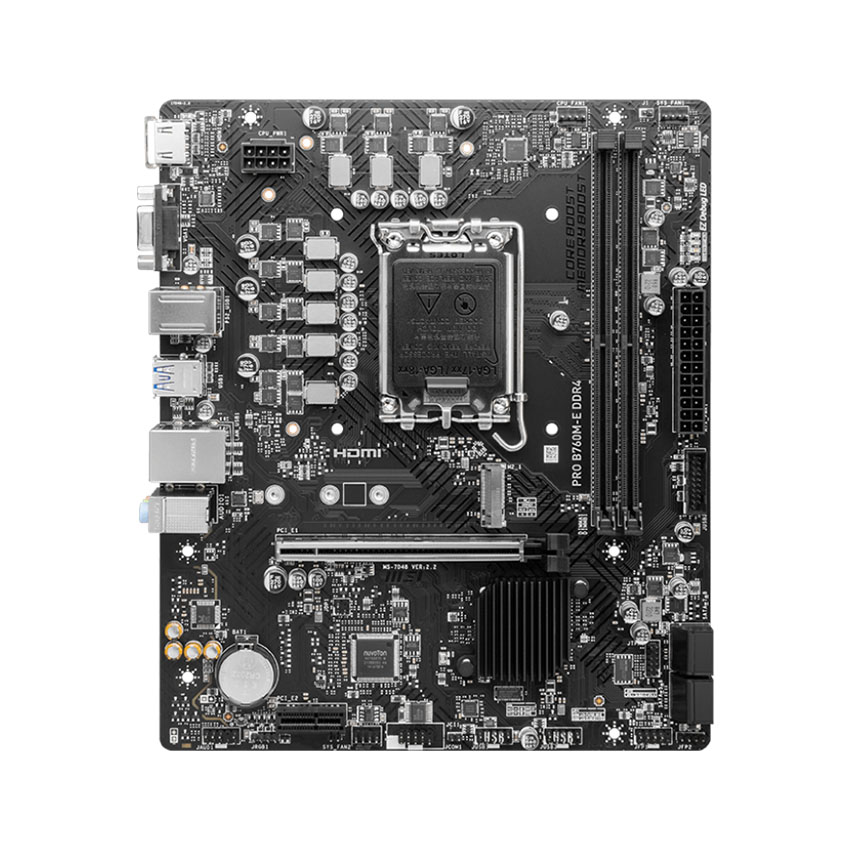

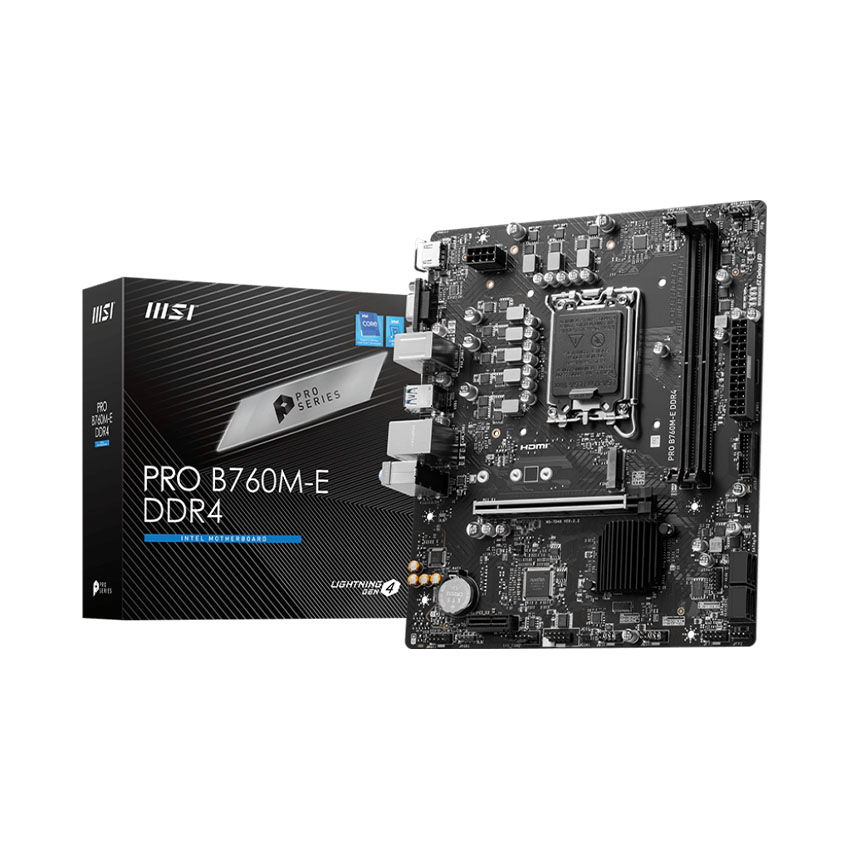

Mainboard MSI PRO B760M-E DDR4
Chi tiết vui lòng tham khảo
| Nhà sản xuất | MSI |
| Model |
PRO B760M-E DDR4 |
| CPU hỗ trợ | Intel Core 12th/13th
Socket LGA1700 |
| Chipset | Intel B760 |
| Hỗ trợ Ram | 2x DDR4, Maximum Memory Capacity 64GB |
| Khe cắm mở rộng | 1x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Hỗ trợ ổ cứng | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Cổng kết nối bên trong | 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |

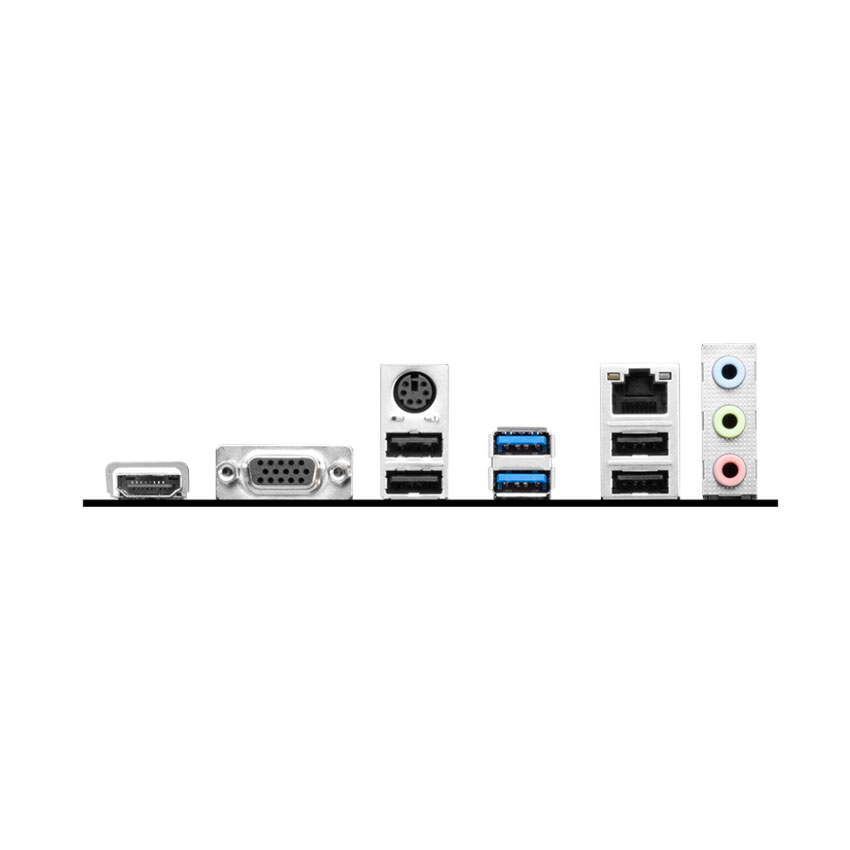

| Cổng kết nối phía sau |
|

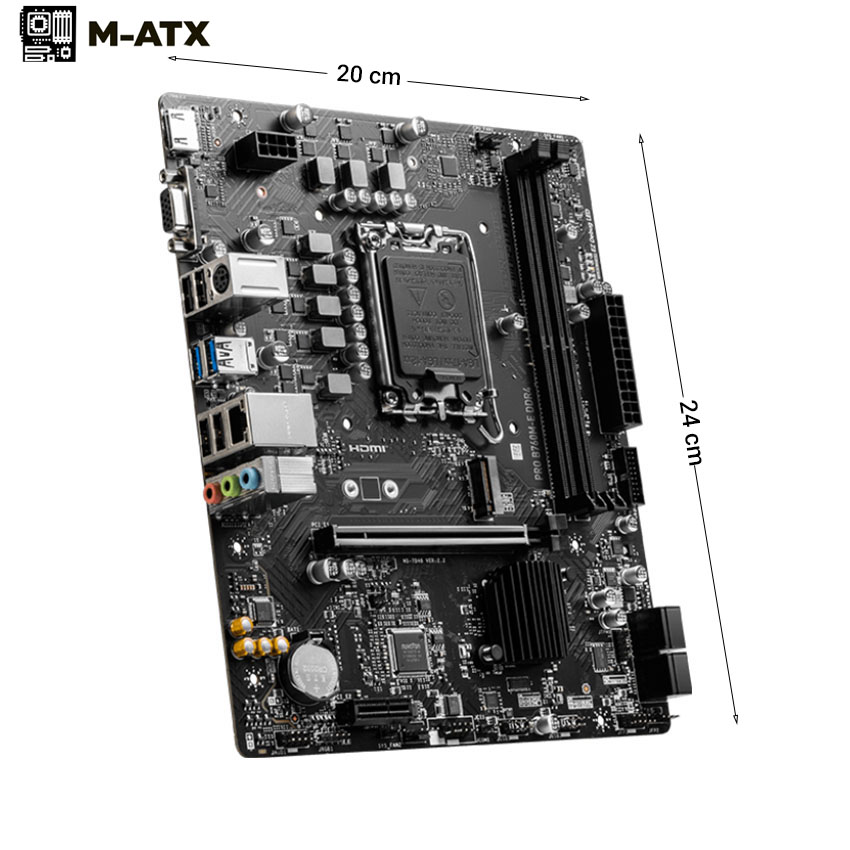

| Kiểu dáng | mATX 200mmx236.16mm |
