Thông số kỹ thuật

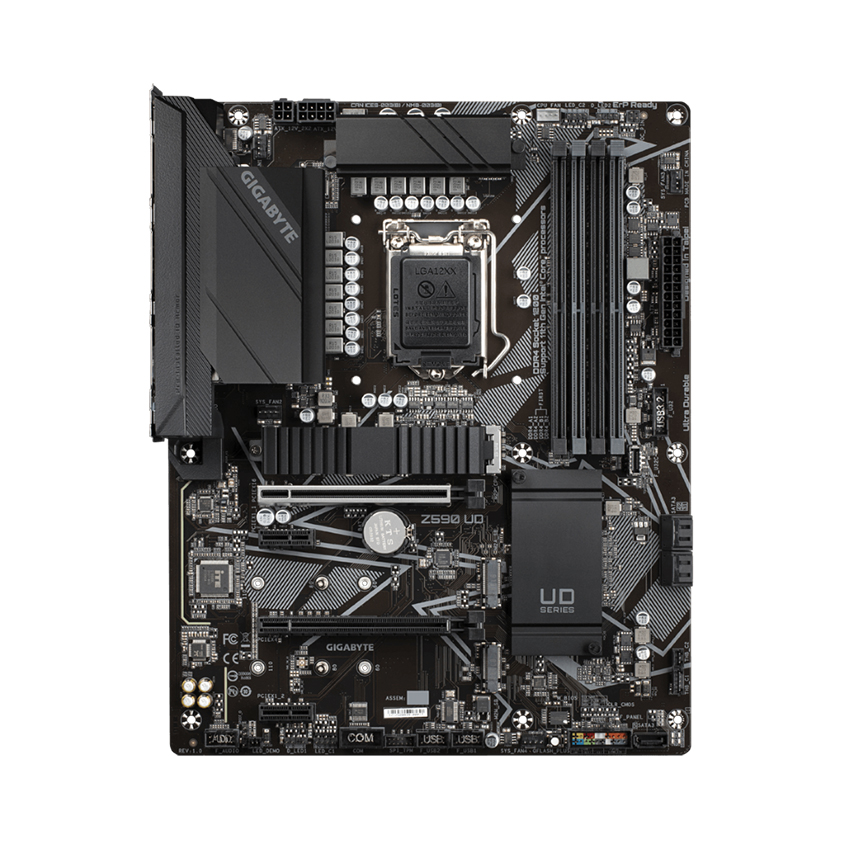

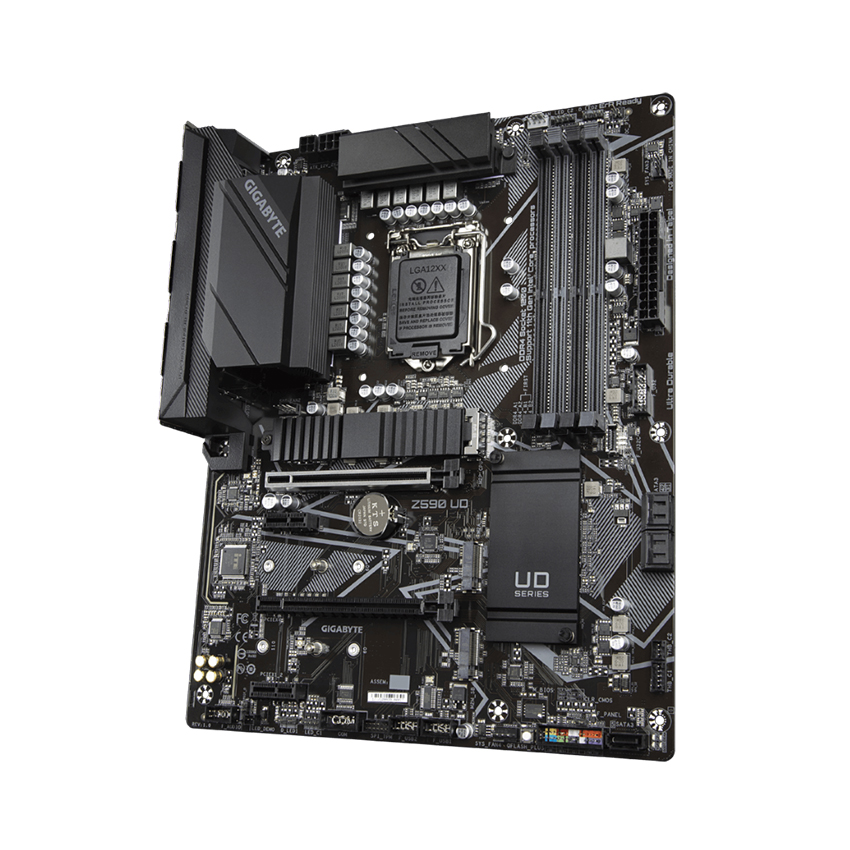

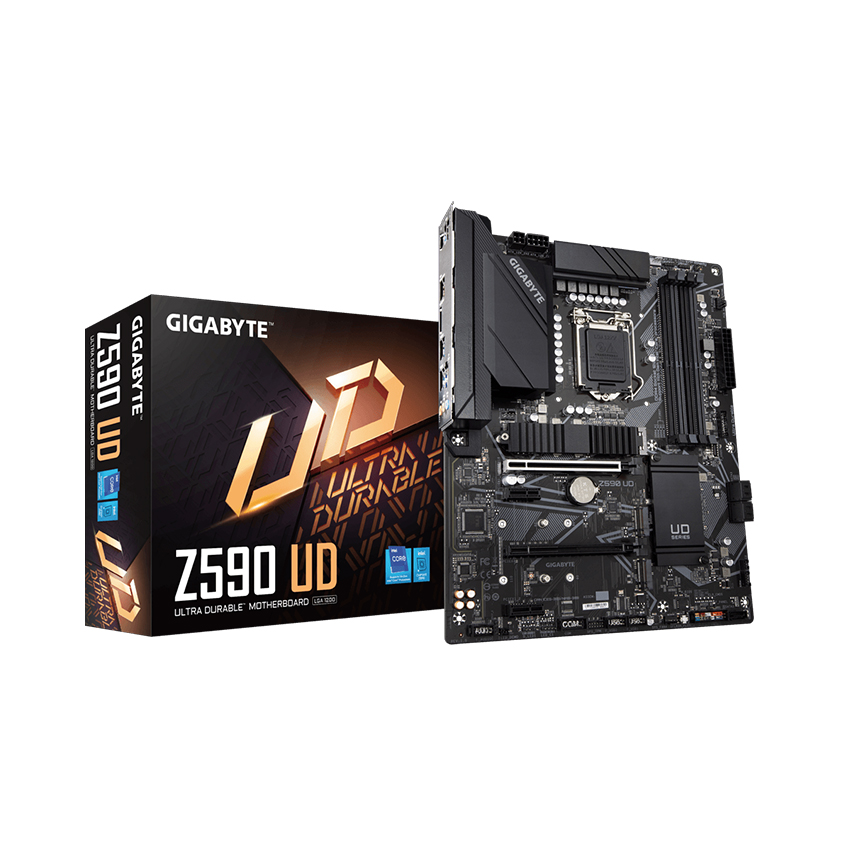

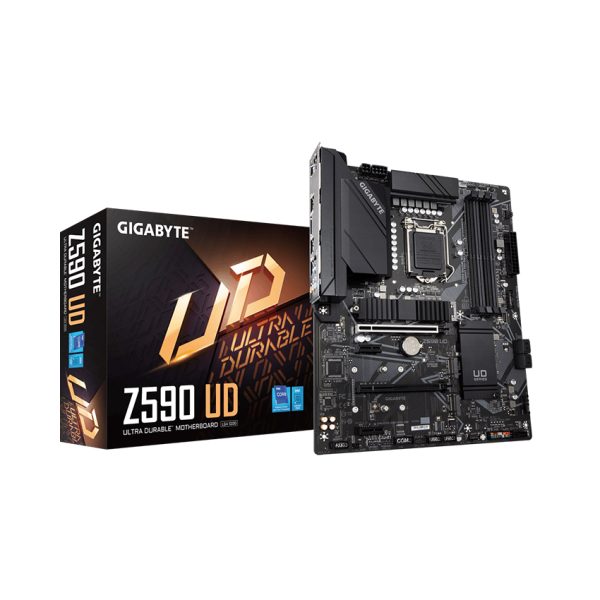

GIGABYTE Z590 UD
Chi tiết vui lòng tham khảo
| Tên Hãng | GIGABYTE |
| Model | Z590 UD |
| CPU hỗ trợ | Intel |
| Chipset | Z590 |
| RAM hỗ trợ | 4 x DDR4 DIMM Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots |
| Ổ cứng hỗ trợ | CPU: 1 x M.2 connector Chipset: 2 x M.2 connector 6 x SATA 6Gb/s connectors |
| Cổng kết nối (Internal) | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 4 x system fan headers 6. 2 x addressable LED strip headers 7. 2 x RGB LED strip headers 8. 1 x Q-Flash Plus button 9. 5 x SATA 6Gb/s connectors 10. 3 x M.2 Socket 3 connectors 11. 1 x front panel header 12. 1 x front panel audio header 13. 1 x S/PDIF Out header 14. 1 x USB 3.2 Gen 1 header 15. 1 x USB Type-C® header, with USB 3.2 Gen 1 support 16. 2 x USB 2.0/1.1 headers 17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 18. 2 x Thunderbolt™ add-in card connectors 19. 1 x serial port header 20. 1 x Clear CMOS jumper |

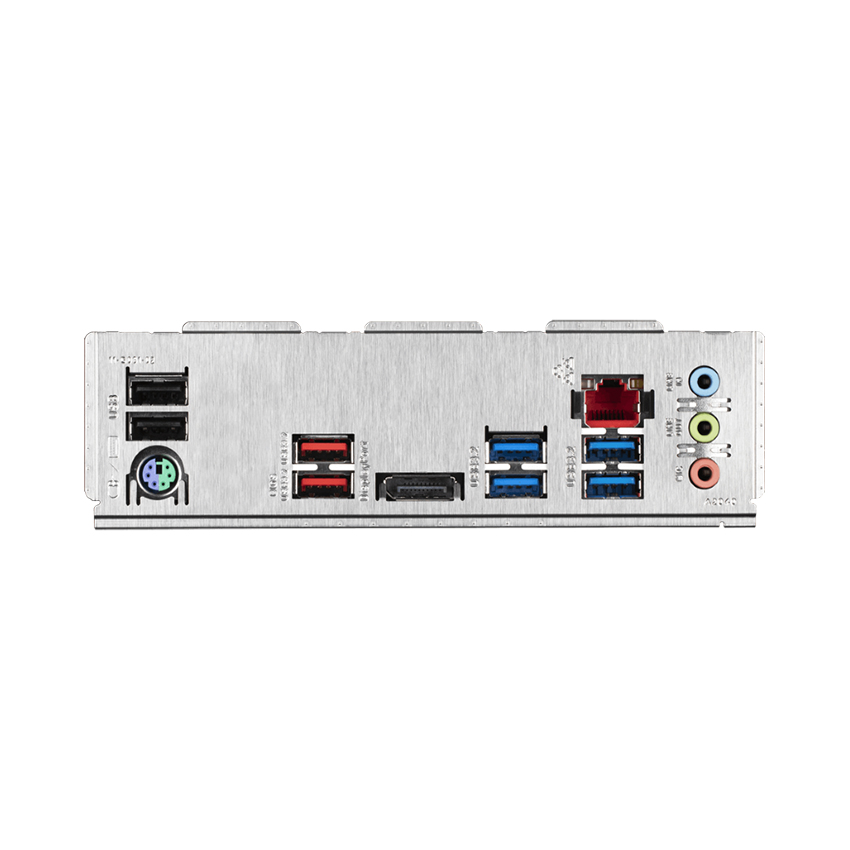

| Cổng kết nối (Back Panel) | 1. 1 x PS/2 keyboard/mouse port
2. 1 x DisplayPort 3. 2 x USB 3.2 Gen 2 Type-A ports (red) 4. 4 x USB 3.2 Gen 1 ports 5. 2 x USB 2.0/1.1 ports 6. 1 x RJ-45 port 7. 3 x audio jacks |
| LAN / Wireless | Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit) |
| Kích cỡ | ATX Form Factor 30.5 cm x 24.4cm |
