• 3rd Gen AMD Ryzen™ Processors:
  Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer “Memory Support List” for more information.)

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

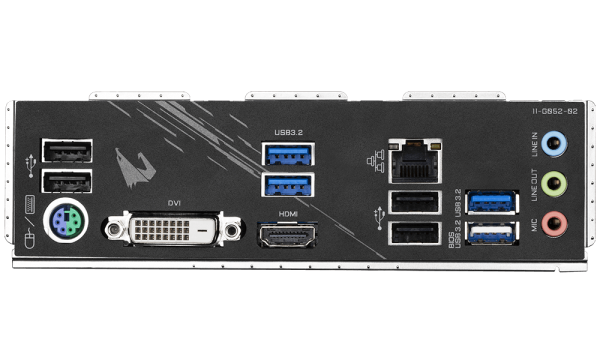

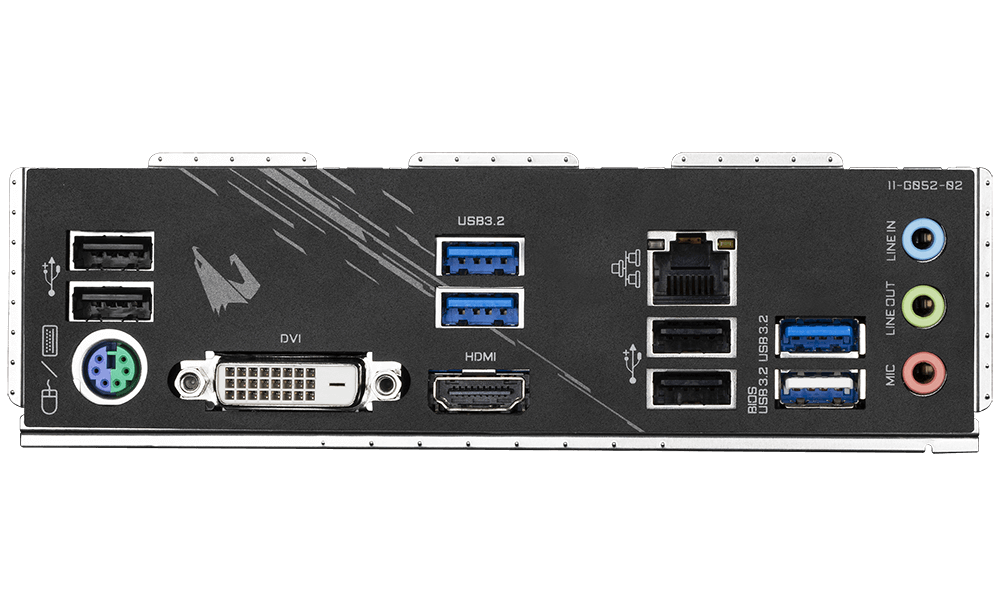

1 x DVI-D port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install
