Thông số kỹ thuật

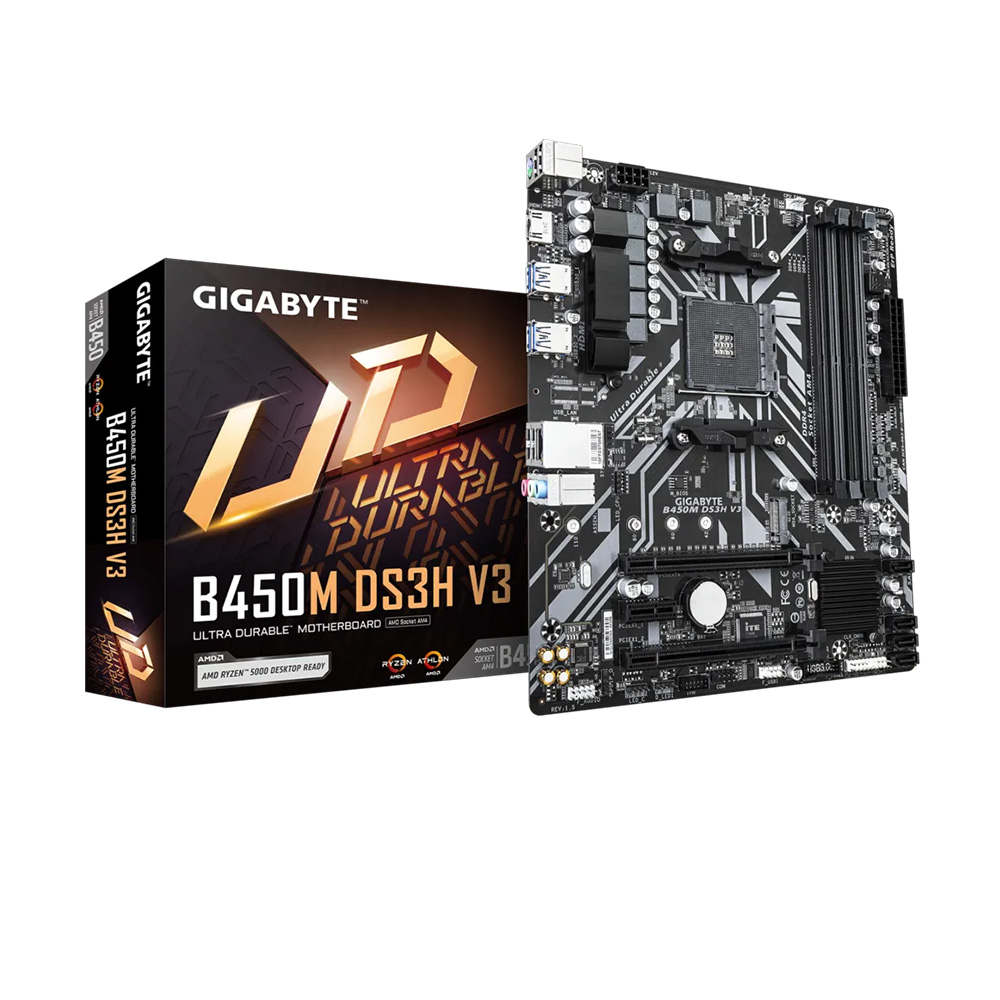

GIGABYTE B450M DS3H V3
Chi tiết vui lòng tham khảo
| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
GIGABYTE |
| Model |
B450M DS3H |
| CPU hỗ trợ |
AMD |
| Chipset |
AMD B450 |
| RAM hỗ trợ |
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Khe cắm mở rộng |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
- 1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
|
| Ổ cứng hỗ trợ |
- 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support)
* Actual support may vary by CPU.
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
|
| Cổng kết nối (Phía trong) |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x CPU cooler LED strip/RGB LED strip header
- 1 x RGB LED strip header
- 2 x addressable LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
|
| Cổng kết nối (Phía sau) |
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
| LAN / Wireless |
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
| Kích cỡ |
- Micro ATX Form Factor; 24.4cm x 21.5cm
|
