Thông số kỹ thuật
ASUS TUF GAMING X570-PLUS WIFI
Chi tiết vui lòng tham khảo
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |
| Modela | TUF X570 GAMING-PLUS (WI-FI) |
| CPU hỗ trợ | AMD |
| Chipset | X570 |
| RAM hỗ trợ | 4 x DDR4 memory slots, support up to 128GB |
| Khe cắm mở rộng | 3rd Gen AMD Ryzen™ Processors |
| 1 x PCIe 4.0 x16 (x16 mode) | |
| 2nd Gen AMD Ryzen™ Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| Ổ cứng hỗ trợ | 8 x SATA 6Gb/s ports, 1 x M.2 slot |
| Cổng kết nối (Internal) | 2 x Aura RGB Strip Header(s) |
| 1 x Addressable Gen 2 header(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
| 1 x SPI TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x COM port header | |
| 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports | |

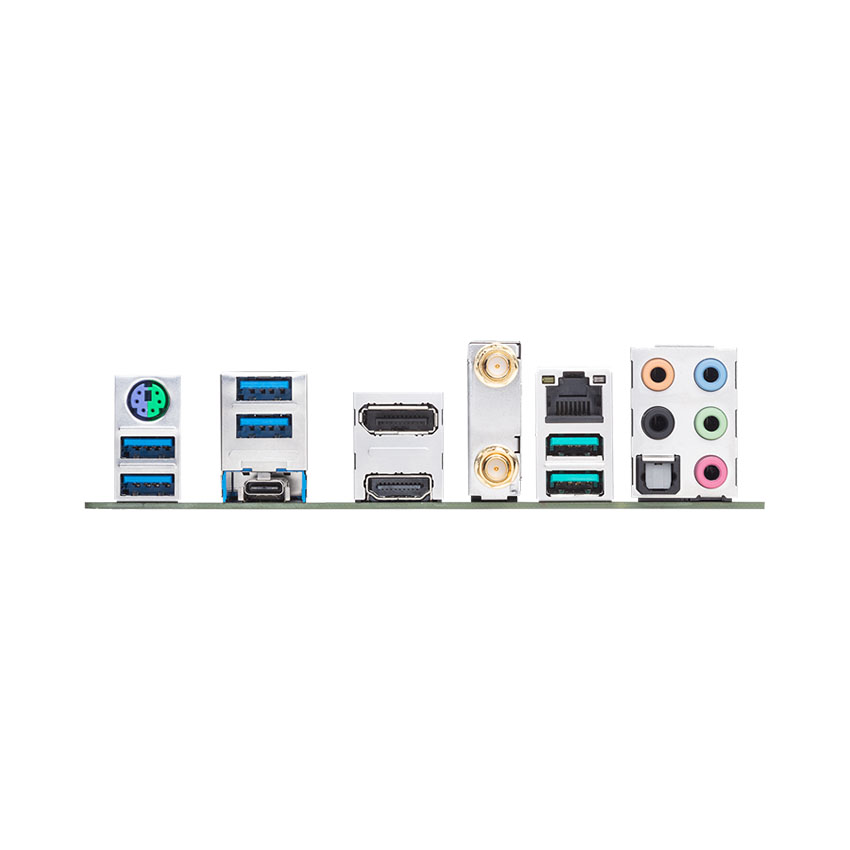

| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 4 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
| 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) | |
| ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) | |
| LAN / Wireless | Realtek® L8200A |
| Wi-Fi 802.11 a/b/g/n/ac | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports MU-MIMO | |

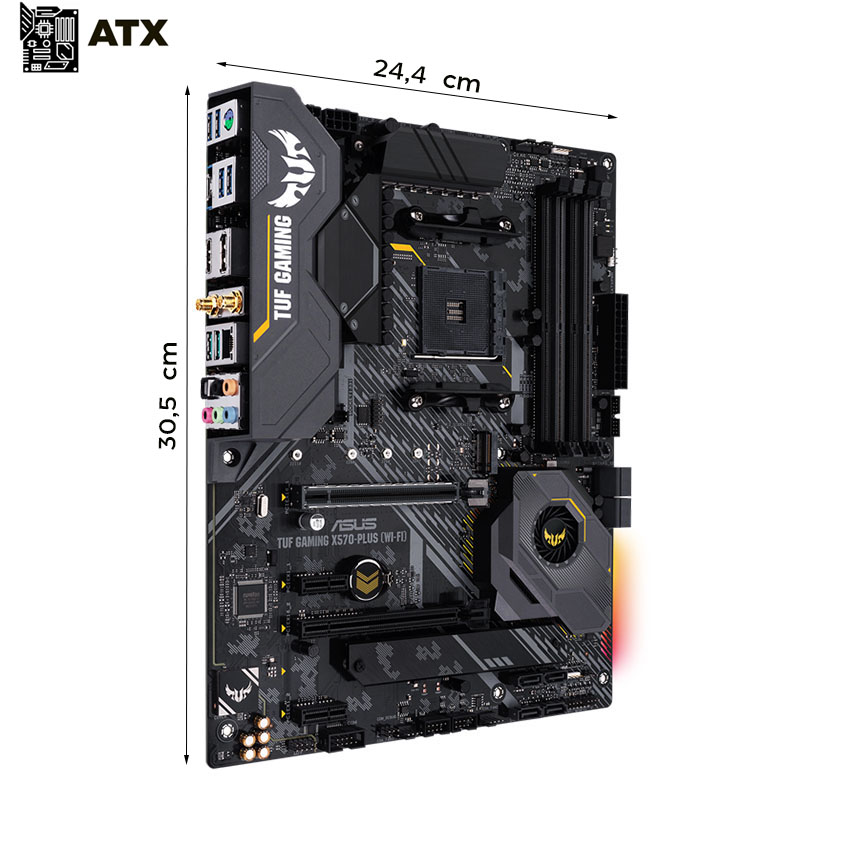

| Kích cỡ | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
