Thông số kỹ thuật

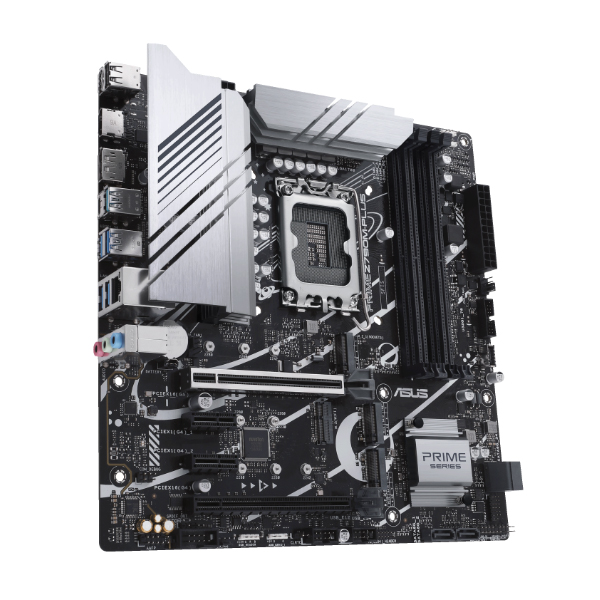

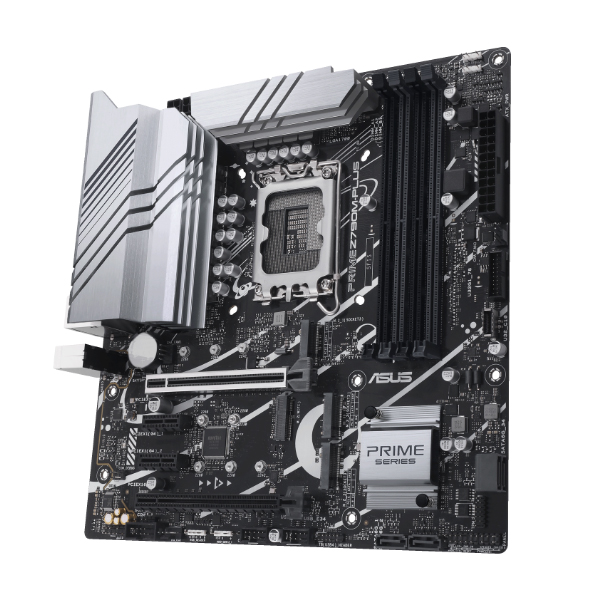

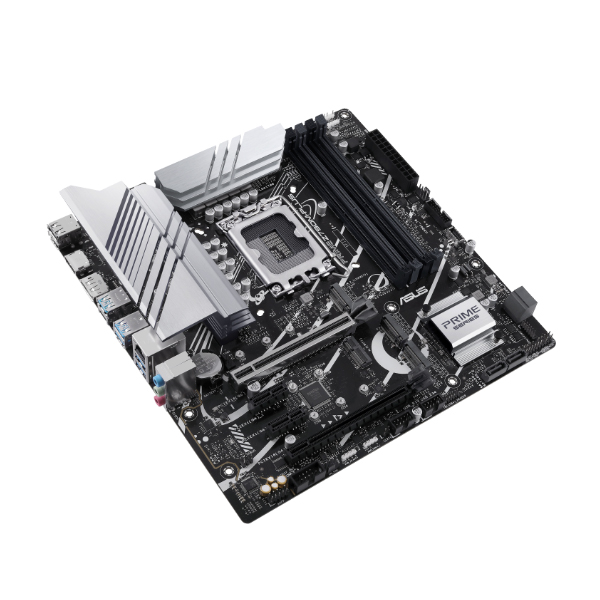

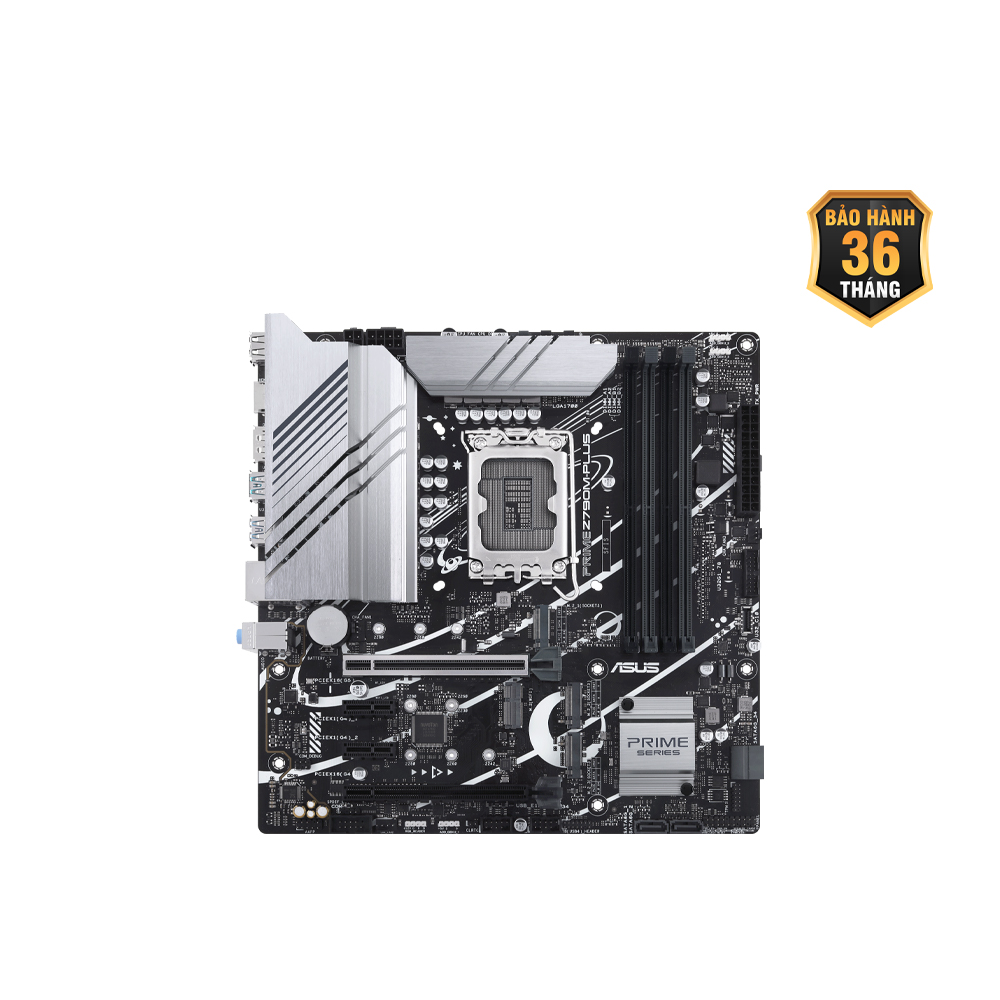

Asus PRIME Z790M PLUS CSM DDR5
Chi tiết vui lòng tham khảo
| Loại sản phẩm | Main – Bo mạch chủ |
| Hãng sản xuất | Asus |
| Model | PRIME Z790M-PLUS |
| Tên sản phẩm | Mainboard Asus PRIME Z790M PLUS CSM DDR5 |
| Socket | Intel LGA 1700 |
| Kích thước | MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Hỗ trợ CPU | Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 4 khe ram |
| Bus RAM hỗ trợ | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Thông số (Lan/Wireless) | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Khe cắm trong | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots |

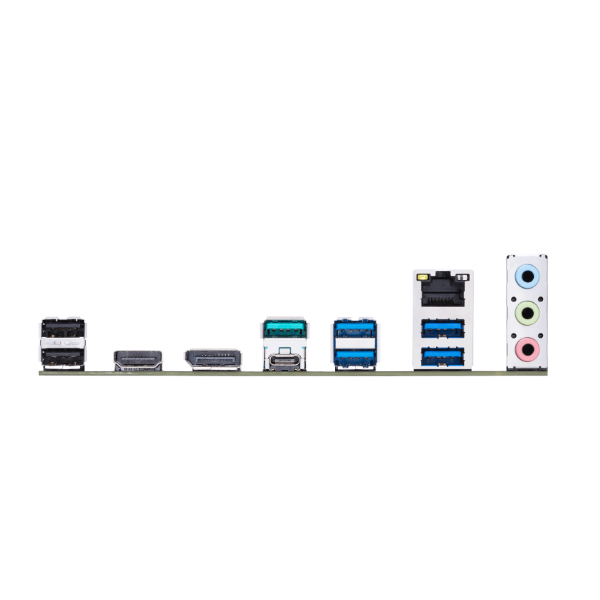

| Cổng giao tiếp ngoài | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks |
| Socket | Intel LGA 1700 |
| Hỗ trợ CPU | Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors |
| Chipset | Intel Z790 |
| Khe cắm RAM | 4 khe ram |
| Card đồ họa | 1 x DisplayPort 1 x HDMI® port |
| Âm thanh | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Kích thước | MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Phụ kiện kèm theo | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide |
