Thông số kỹ thuật

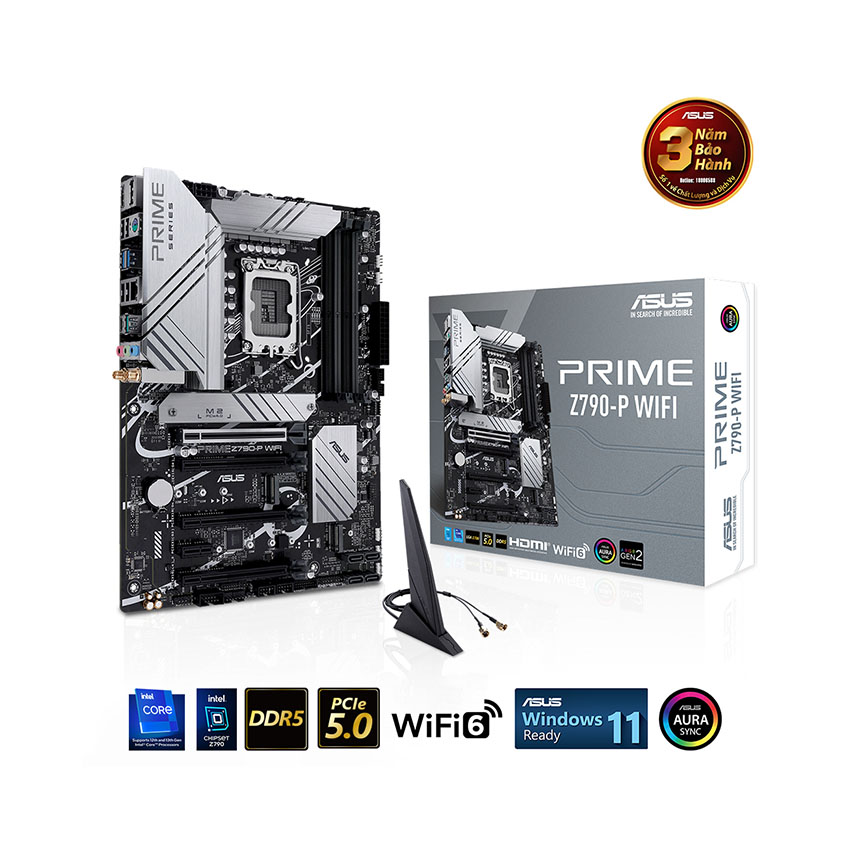

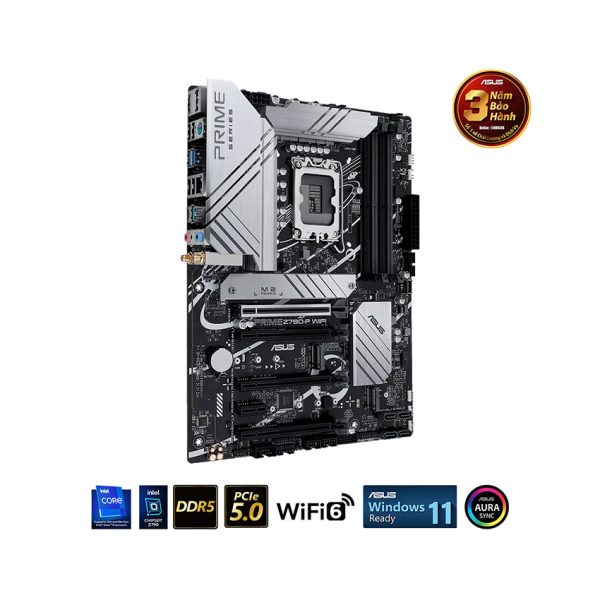

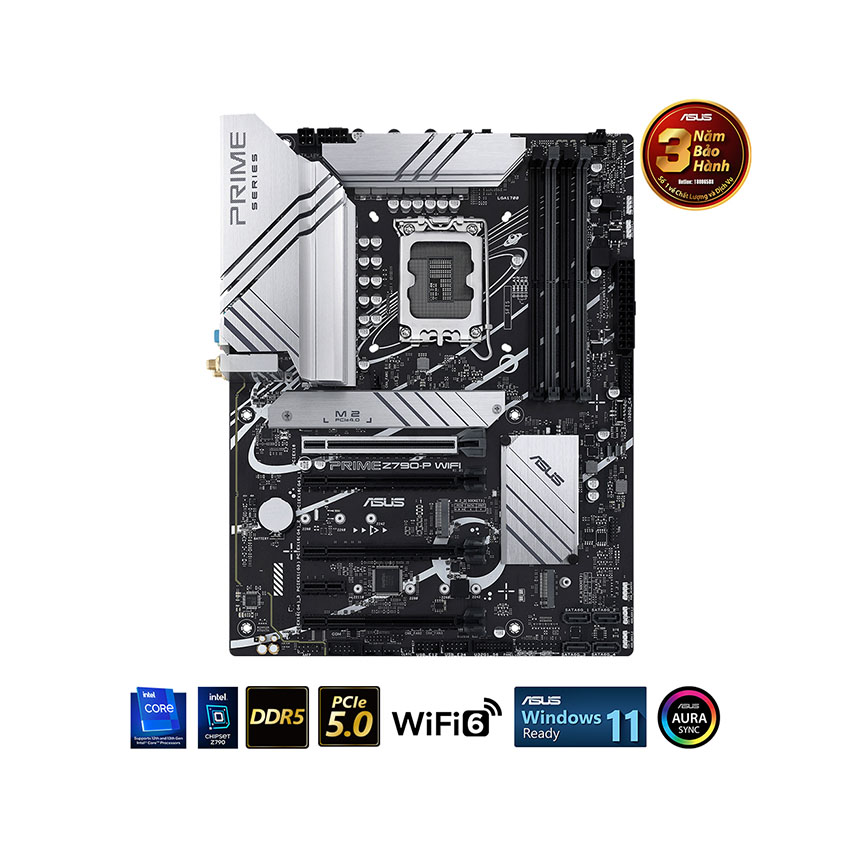

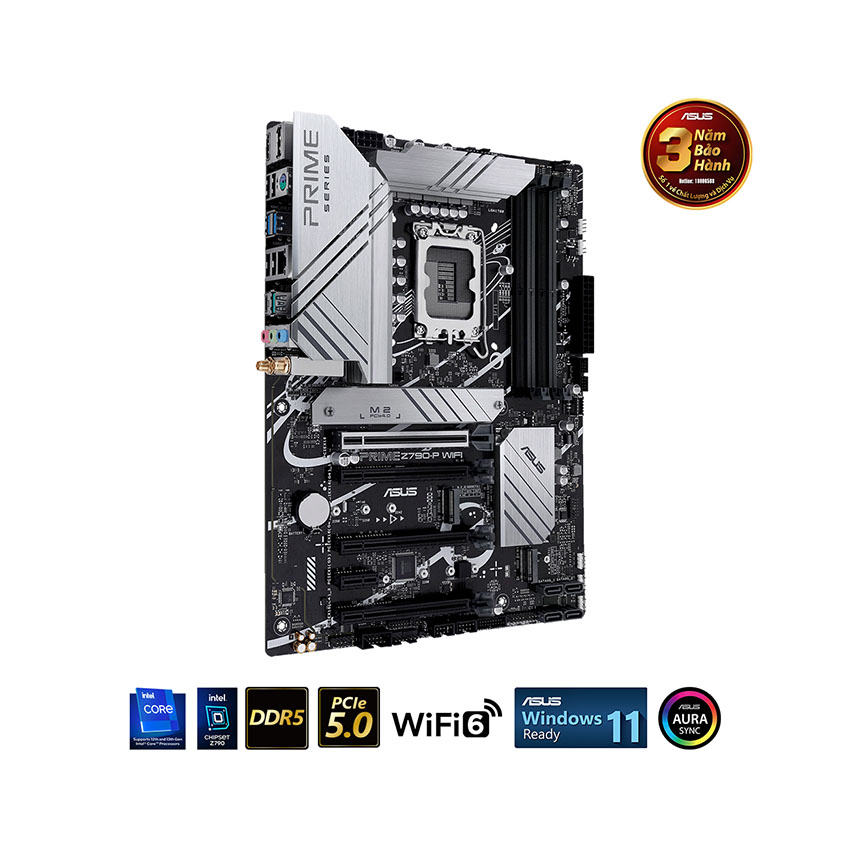

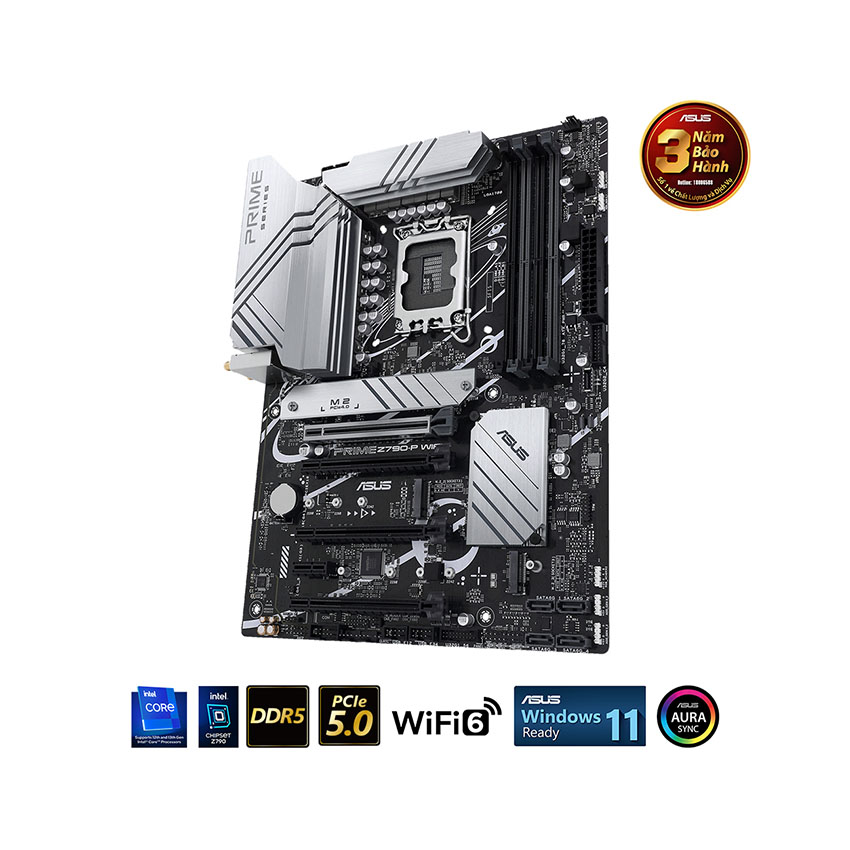

Asus PRIME Z790-P WIFI-CSM D5
Chi tiết vui lòng tham khảo
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |
| Model | PRIME Z790-P WIFI-CSM |
| CPU hỗ trợ | Intel |
| Chipset | Intel Z790 Chipset |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC) |
| 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory | |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z790 Chipset | |
| 3 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| Intel® Z790 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| Cổng kết nối (Internal | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x Aura RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5pin System Panel header | |
| 1 x Thunderbolt™ (USB4®) Header | |
| Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| LAN / Wireless | Wi-Fi 6 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth® v5.2 | |
| 1 x Realtek 2.5Gb Ethernet | |

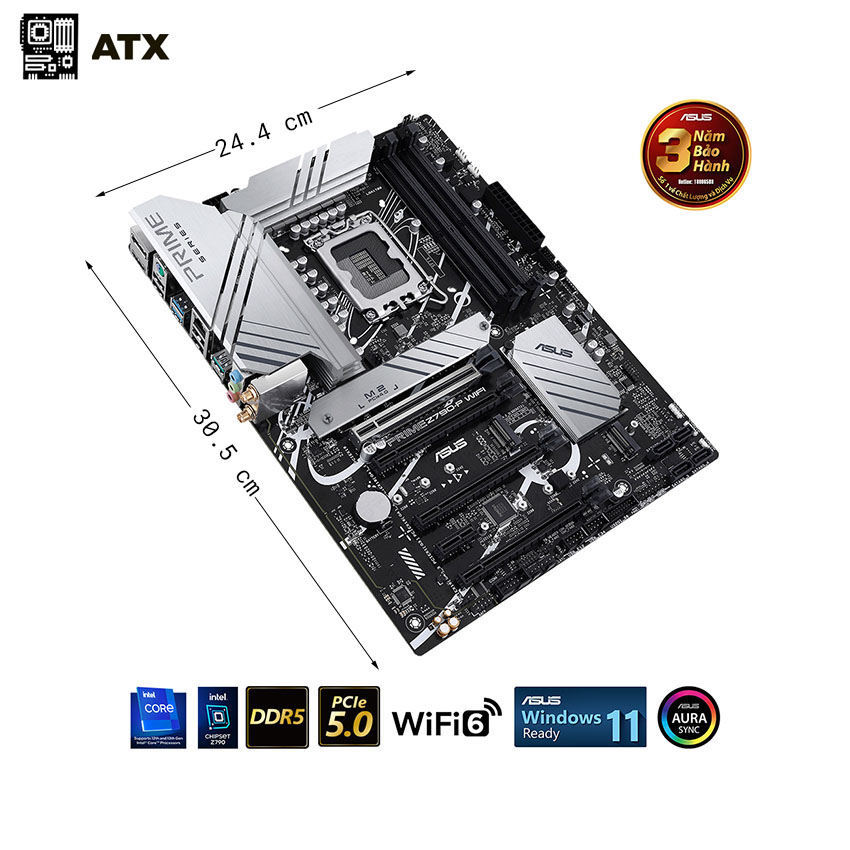

| Kích cỡ | ATX Form Factor |
| 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
