Thông số kỹ thuật

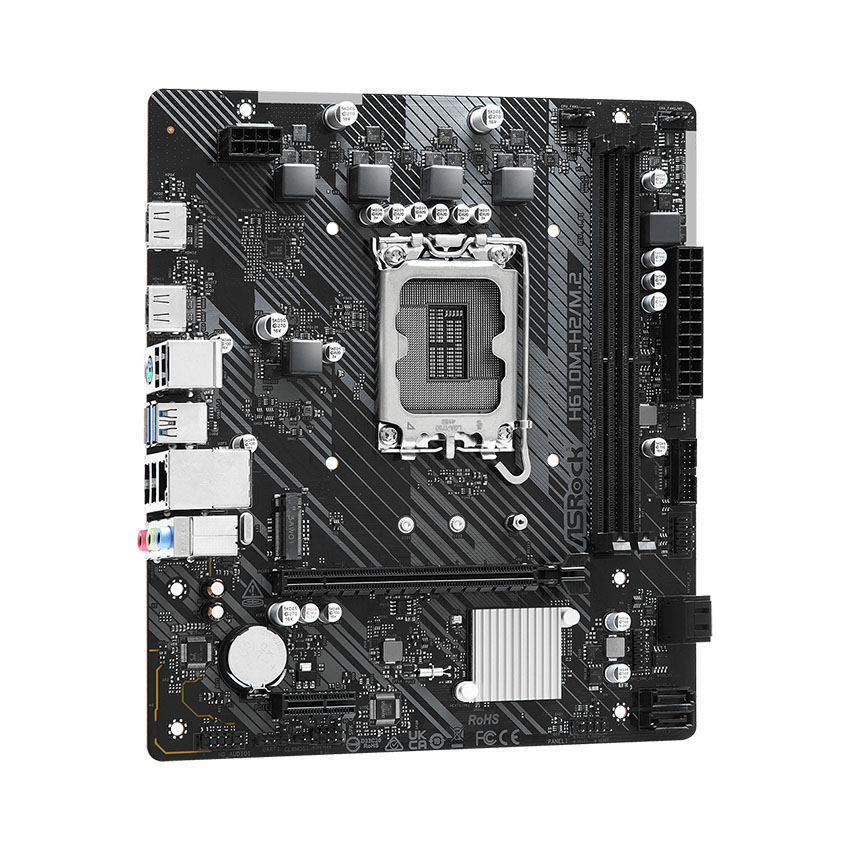

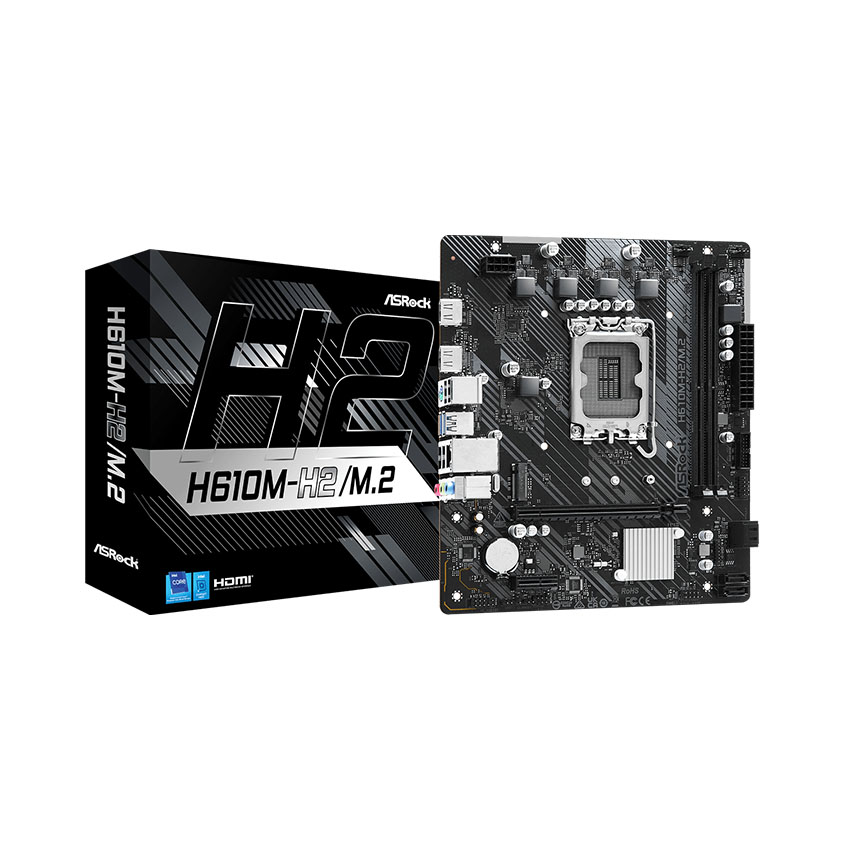

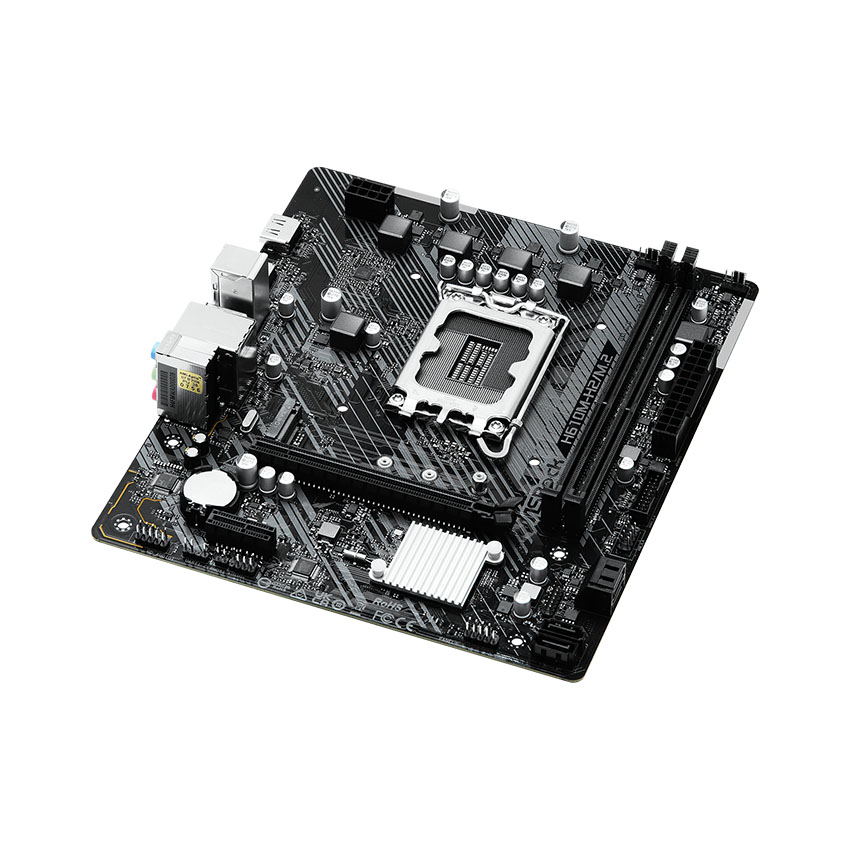

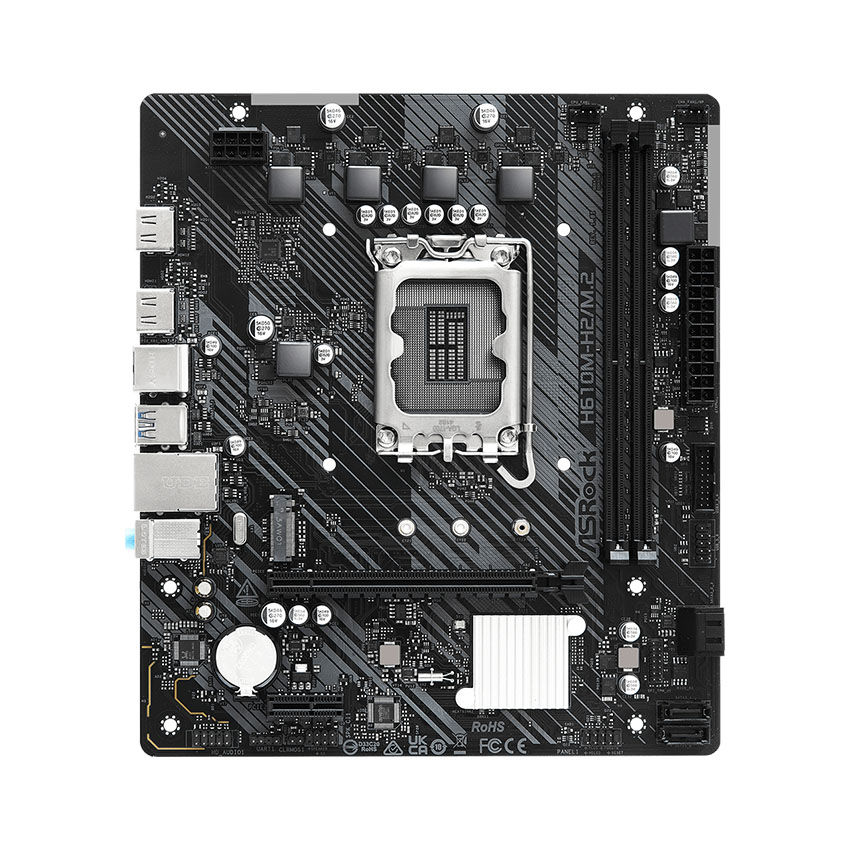

ASROCK H610M-H2/M.2
Chi tiết vui lòng tham khảo
| Unique Feature | Rock-Solid Durability – 3+1+1 Power Phase EZ Update – ASRock Auto Driver Installer |
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | – Intel® H610 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 3200 – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN
|
– Gigabit LAN 10/100/1000 Mb/s – Realtek 8111H |
| Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE2)** Supports NVMe SSD as boot disks |
| Storage | Chipset: – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks |
| USB | – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 6 x USB 2.0 (4 Rear, 2 Front)* All USB ports support ESD Protection |
| Connector | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

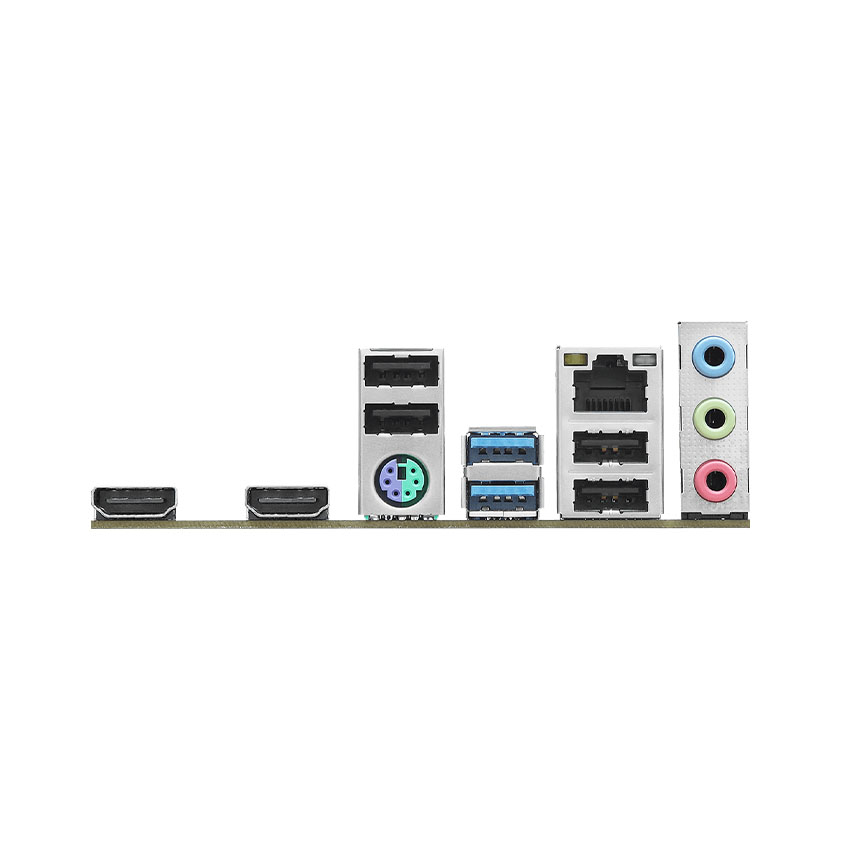

| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port – 2 x HDMI Ports – 2 x USB 3.2 Gen1 Type-A Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| UEFI and Software | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | – 1 x I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket |
| Form Factor | – Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE |
