Thông số kỹ thuật

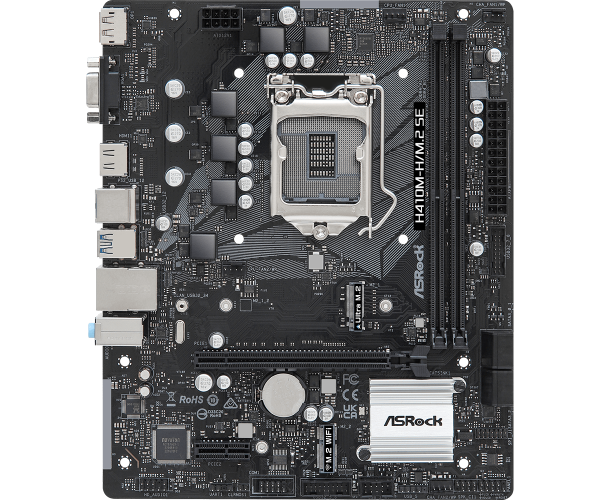

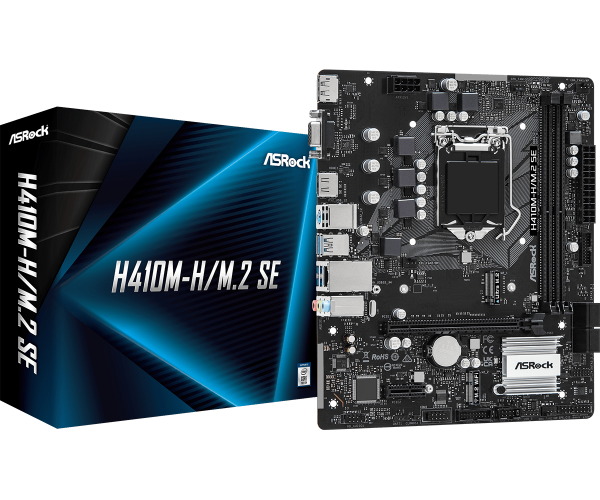

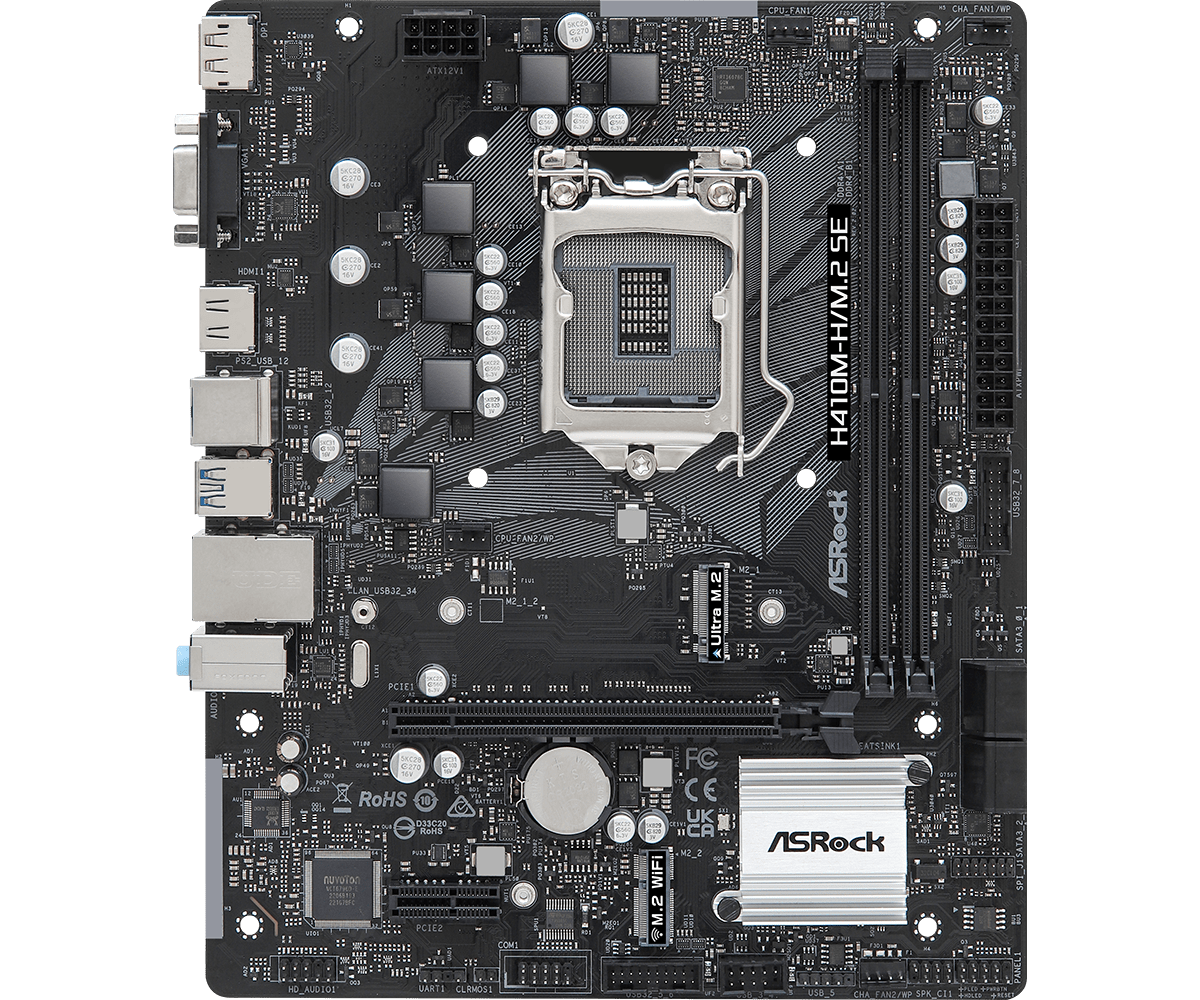

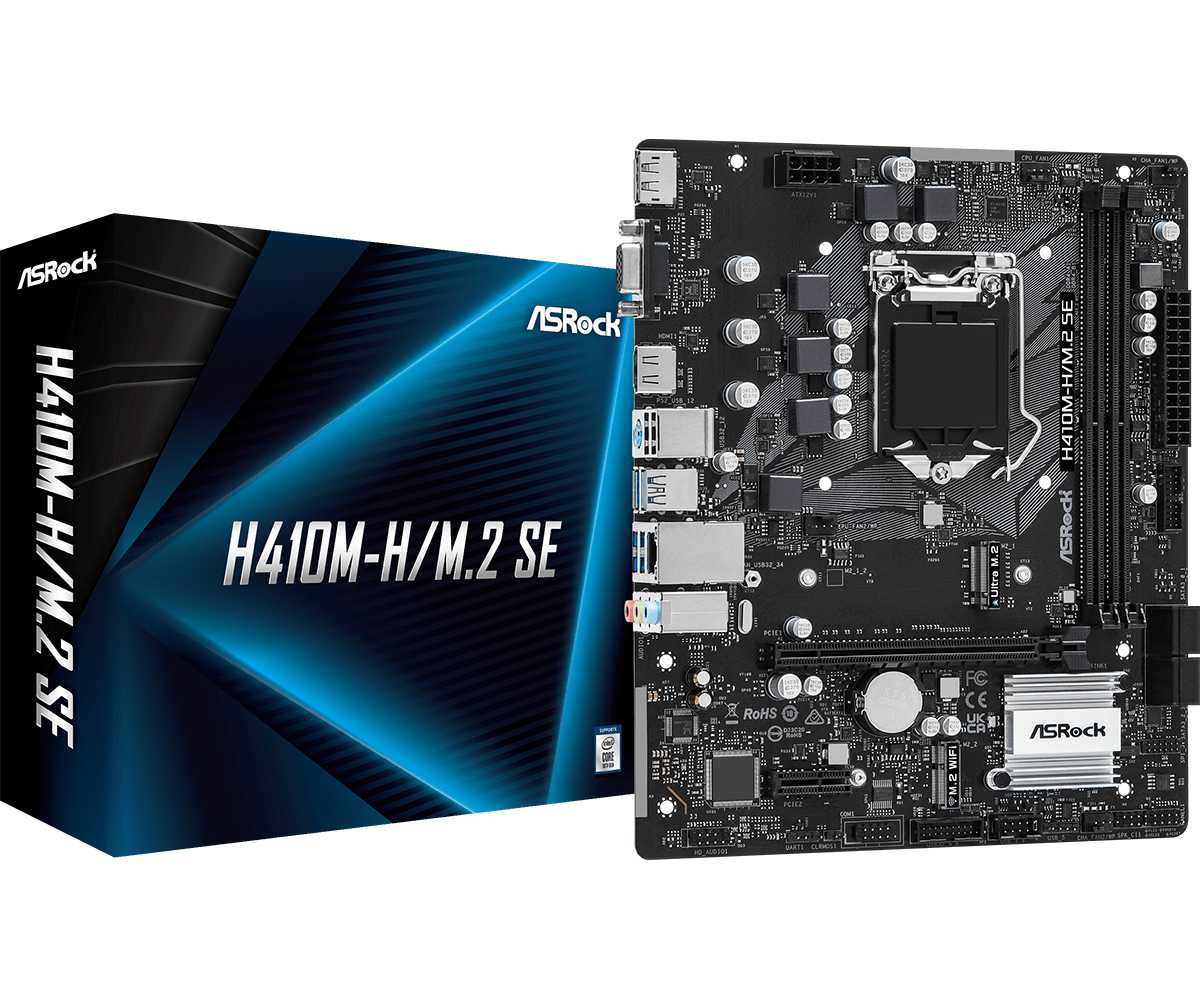

ASROCK H410M-H/M.2 SE
Chi tiết vui lòng tham khảo
| THƯƠNG HIỆU | ASRock |
|---|---|
| BẢO HÀNH | 36 tháng |
| CHIPSET | H370 |
| SOCKET | Intel LGA 1200 |
| KHE RAM TỐI ĐA | 2 khe |
| RAM TỐI ĐA | 64 GB |
| BUS RAM HỖ TRỢ | 2133MHz, 2400MHz, 2666MHz, 2800MHz, 2933MHz |
| KÍCH CỠ MAINBOARD | Micro ATX |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| CARD ÂM THANH | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| ĐỒ HỌA | Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz |

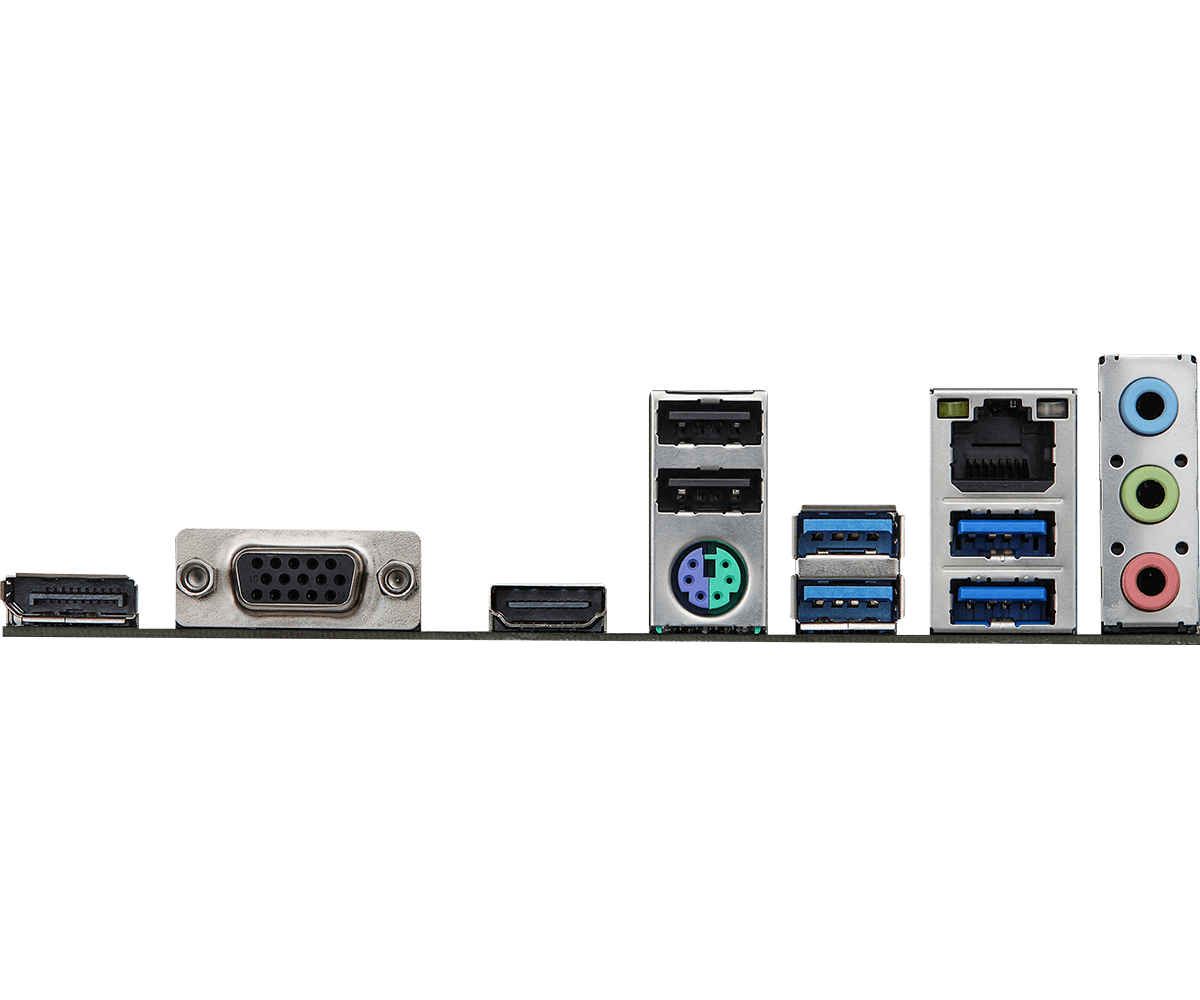

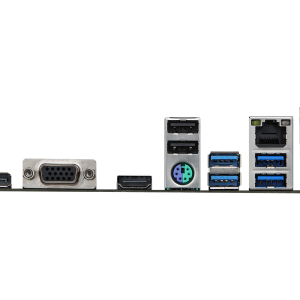

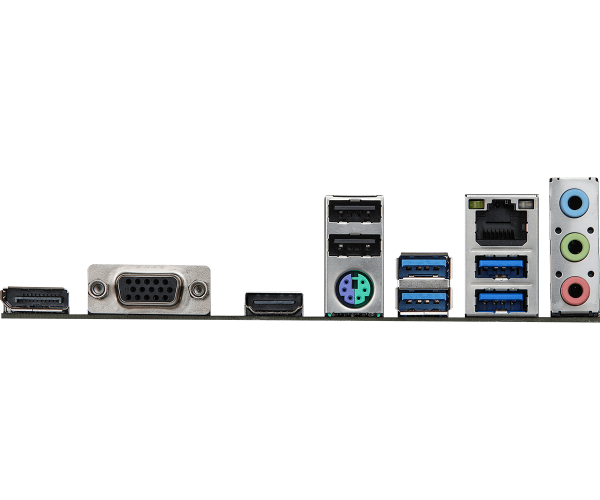

| INPUT/OUTPUT PHÍA SAU | – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DisplayPort 1.2 – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| CỔNG KẾT NỐI | – SPI TPM 2.0 IC – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – 1 x Realtek RTL8111H – Supports Wake-On-LAN – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
