Thông số kỹ thuật

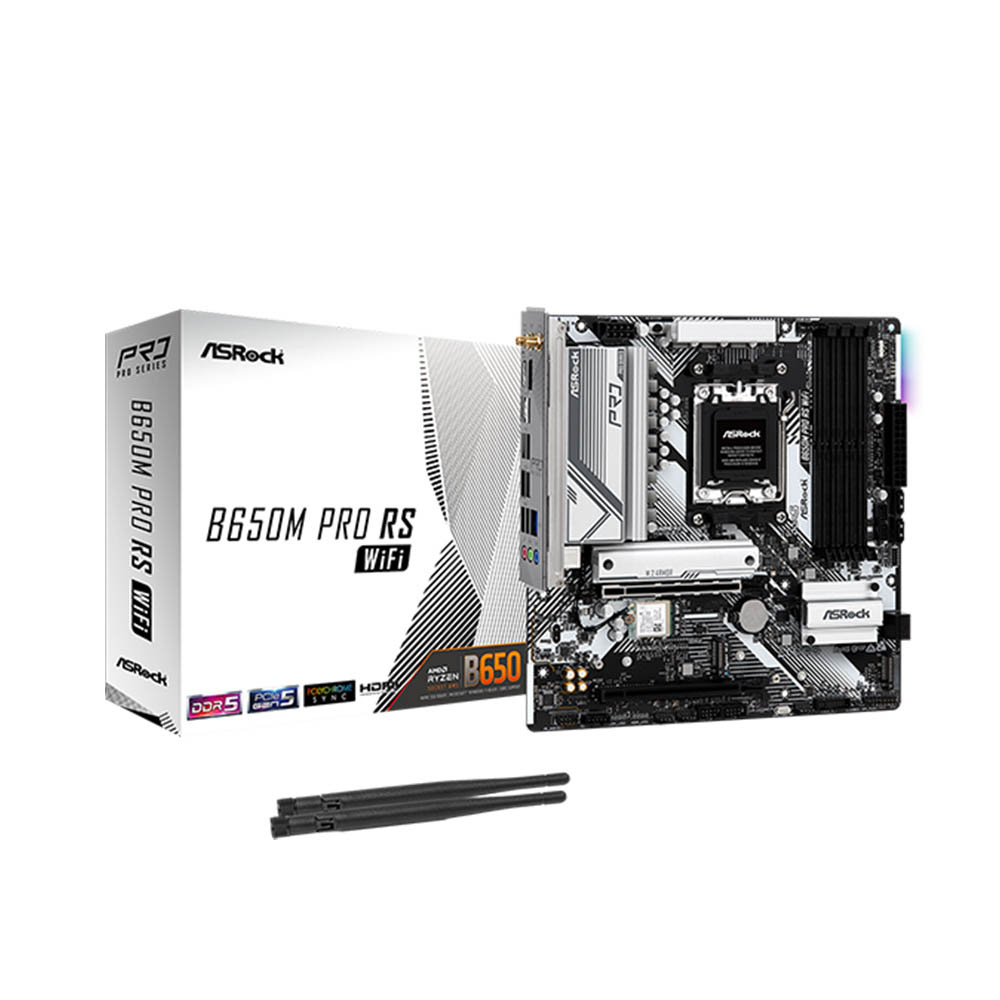

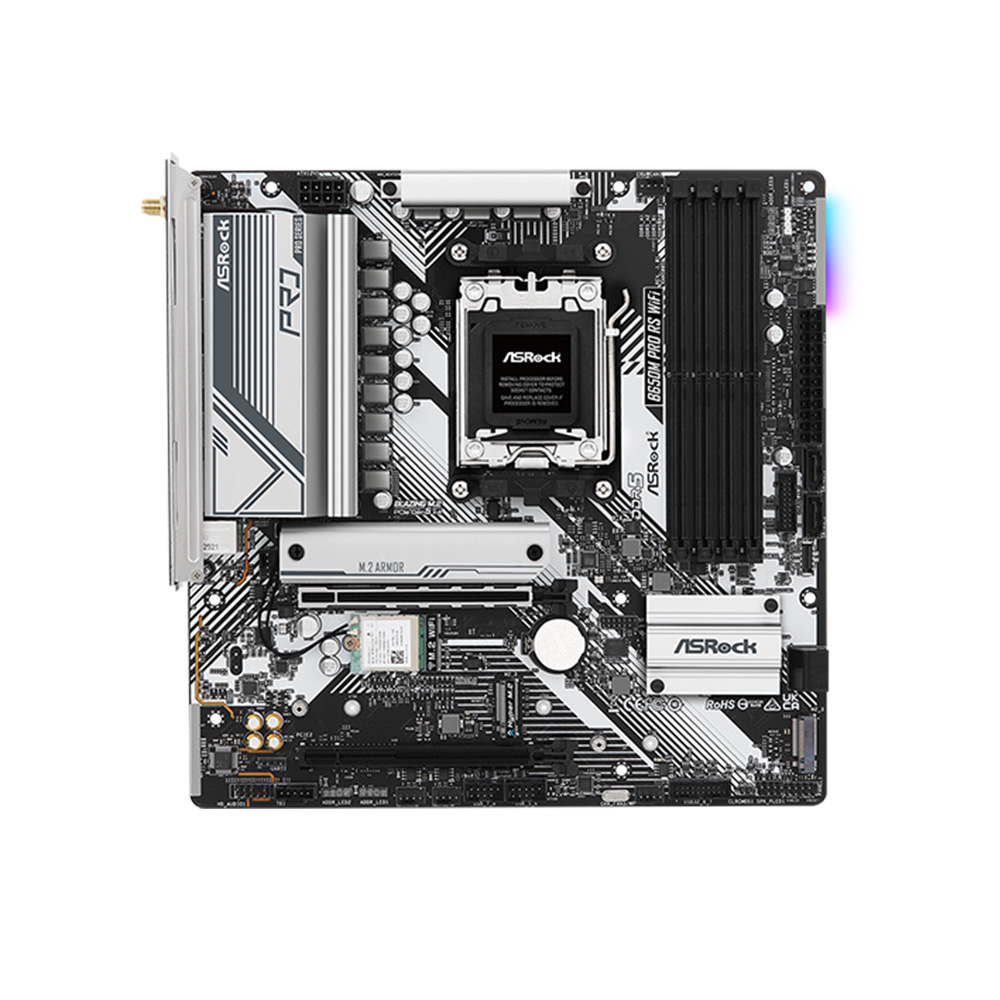

Mainboard Asrock B650M Pro RS Wifi DDR5
Chi tiết vui lòng tham khảo
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| CPU hỗ trợ | AMD |
| Chipset | AMD B650 |
| RAM hỗ trợ | 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 192GB |
| Khe cắm mở rộng | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Ổ cứng hỗ trợ | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |

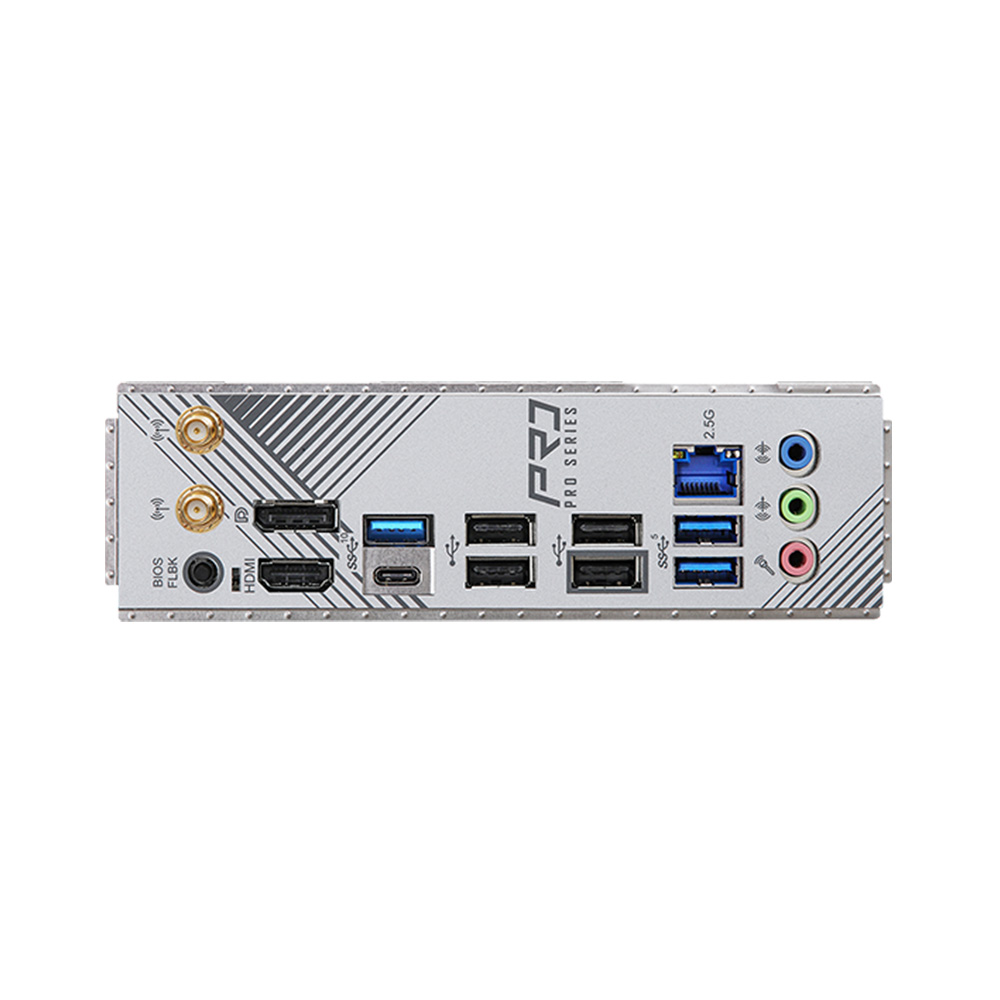

| Cổng kết nối (Back Panel) | – 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN / Wireless | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– 802.11ax Wi-Fi 6E Module |
| Kích cỡ | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
